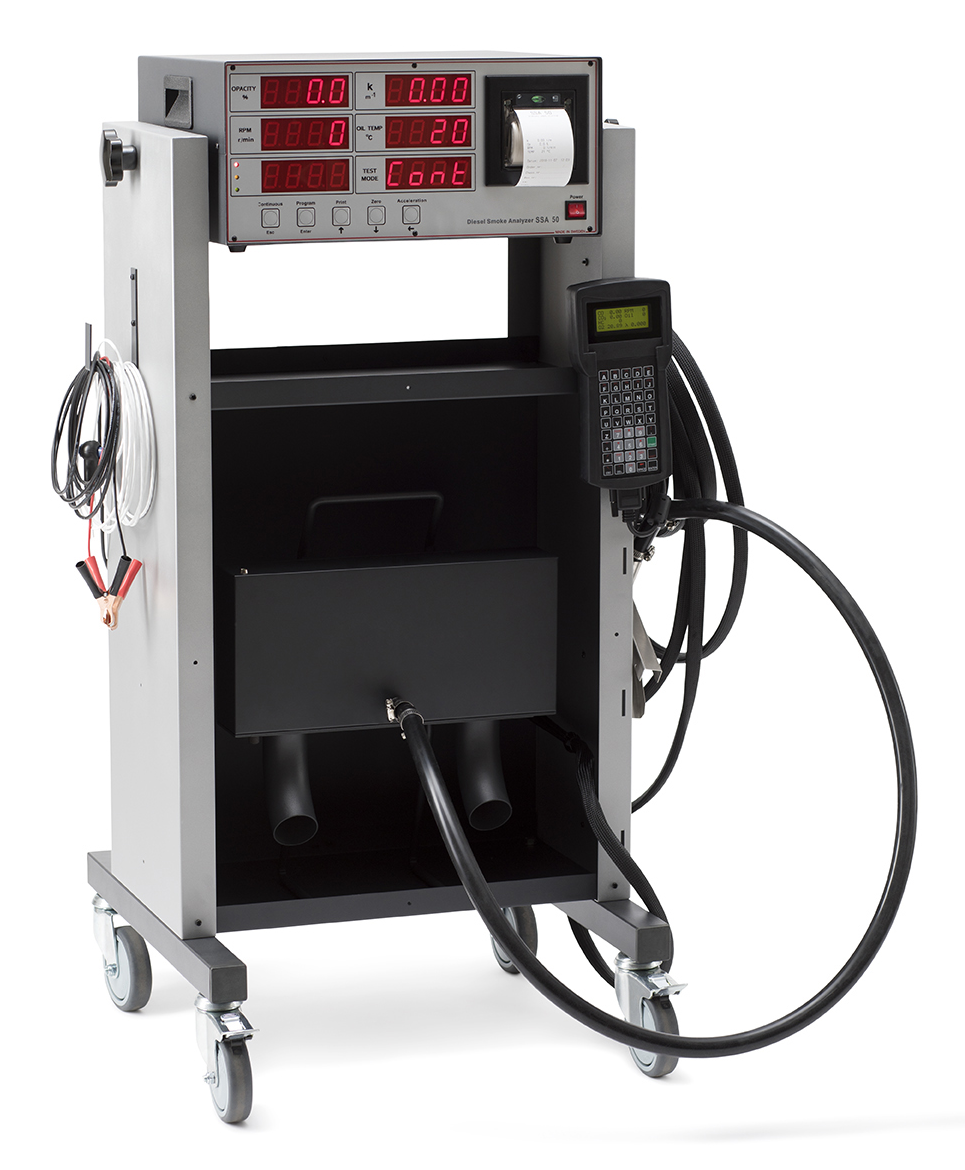

SSA 50 Compact Diesel Opacimeter

EnviroClean SSA 50 Compact

(Formerly Opus 50-B Compact)

Made in Sweden

The SSA 50 is a state-of-the-art, professional light
absorption partial flow Opacimeter for emission test of
diesel vehicles.

It’s specially designed for intensive use and single person
operation, such as Vehicle Inspection or Professional
Workshops. The vehicle test time is less than 3 minutes

Functionality
The program includes two test modes:
continuous gas sampling - full load/part
load and free acceleration measurement.

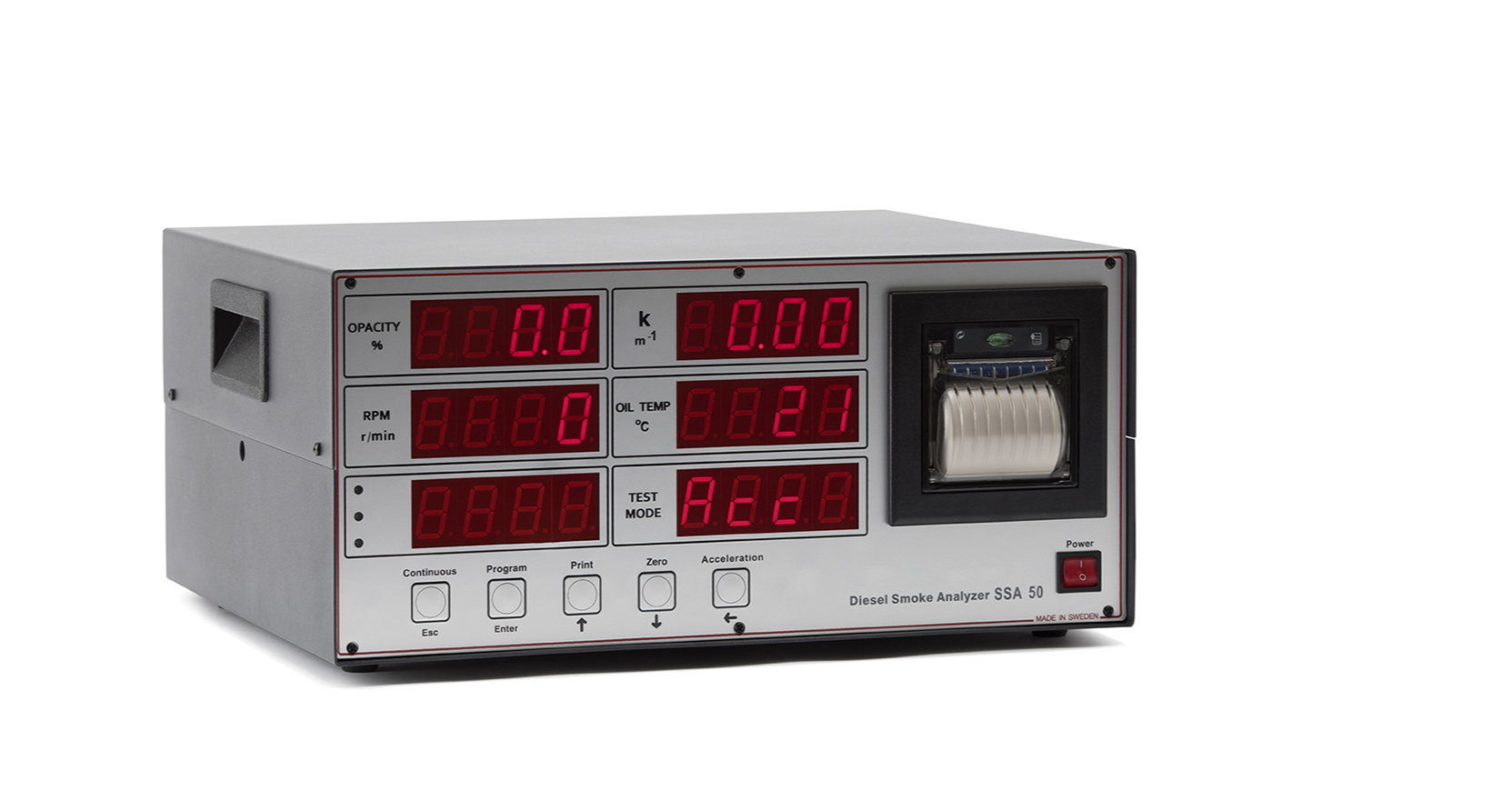

The values are displayed on the large LED
displays.
-Automatic zeroing
-Linearity test

The acceleration test program can be
customized according to country
specifications and legislation.

Measurement
The diesel smoke opacity is measured in
smoke density % (also known as Hartridge
HSU units) as well as in absorption
coefficient k (m-1
). The readings of the k
and % opacity values are displayed
simultaneously during operation on the
large 1 inch LED display’s.

Flexible Design
The flexible design with a small separate
smoke head makes it easy to use on all
sizes of vehicles such as cars, trucks, busses
and others. The cable length between the
smoke unit and the main unit is 10 m (or
Bluetooth) and the LCD remote control
cable is 5 m.

Standards
The SSA 50 complies to ISO 11614 and
72/306/EEC.

Accessories
The analyzer can be equipped with
different RPM and Oil temperature options.
Optionally the main unit can communicate
with the smoke unit with Bluetooth
