SGA 40 Gas Opacimeter

EnviroClean SGA 40

(Formerly Opus 40-C)

Made in Sweden

SGA 40 has been produced since 1994 and in
over 20 000 units.

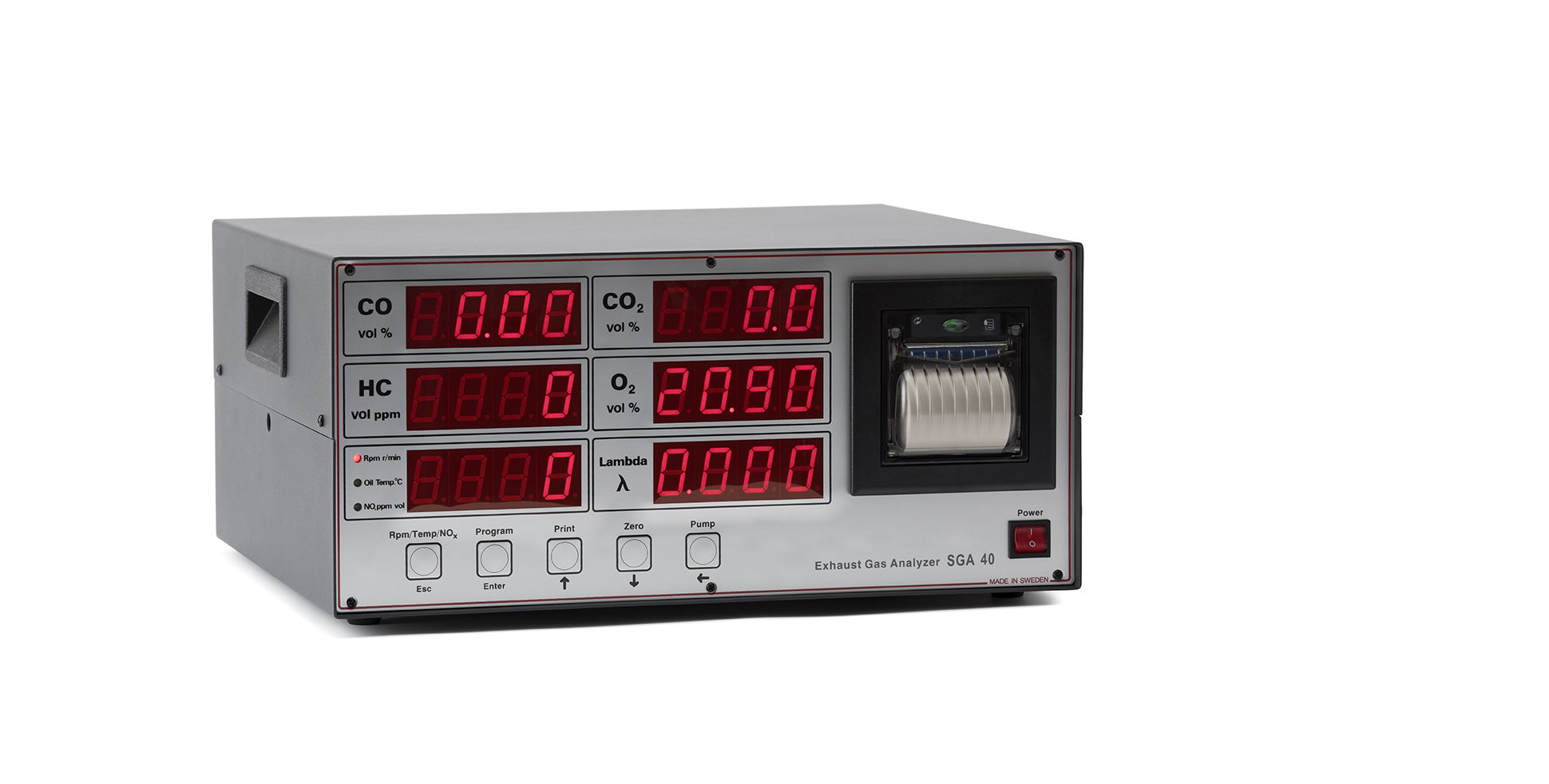

The gas analyzer has large 25 mm LED displays
and a professional design. With its robustness
and many automatically functions such as
automatic zero calibration, leak check and HC
”hang-up” test. It is an easy used and handled
machine.

WPS “Water Protection System”: protects the
sampling chamber of the IR bench from being
damaged of moisture/liquids if those would enter
the analyzer.

• Built in high speed thermo printer: Gas- and smoke
values, Hi-Lo tests printed according to 96/96/EEC.

• S/w flexibility and adaptation: Analyzers s/w can be
programmed with specifications to fulfill different
legislations of countries and regions.

• Optical IR bench: Solid state detector, OIML class 0
with high accuracy.

• Reliability: 12 months calibration intervals.

• OPUS 40 has a flexible design and is adaptable as 3-,
4- or 5-gas analyzer with NOx.

• 4-gas analyzing combined with k- value and opacity
samplings are is available as the SGA 40 Combi.

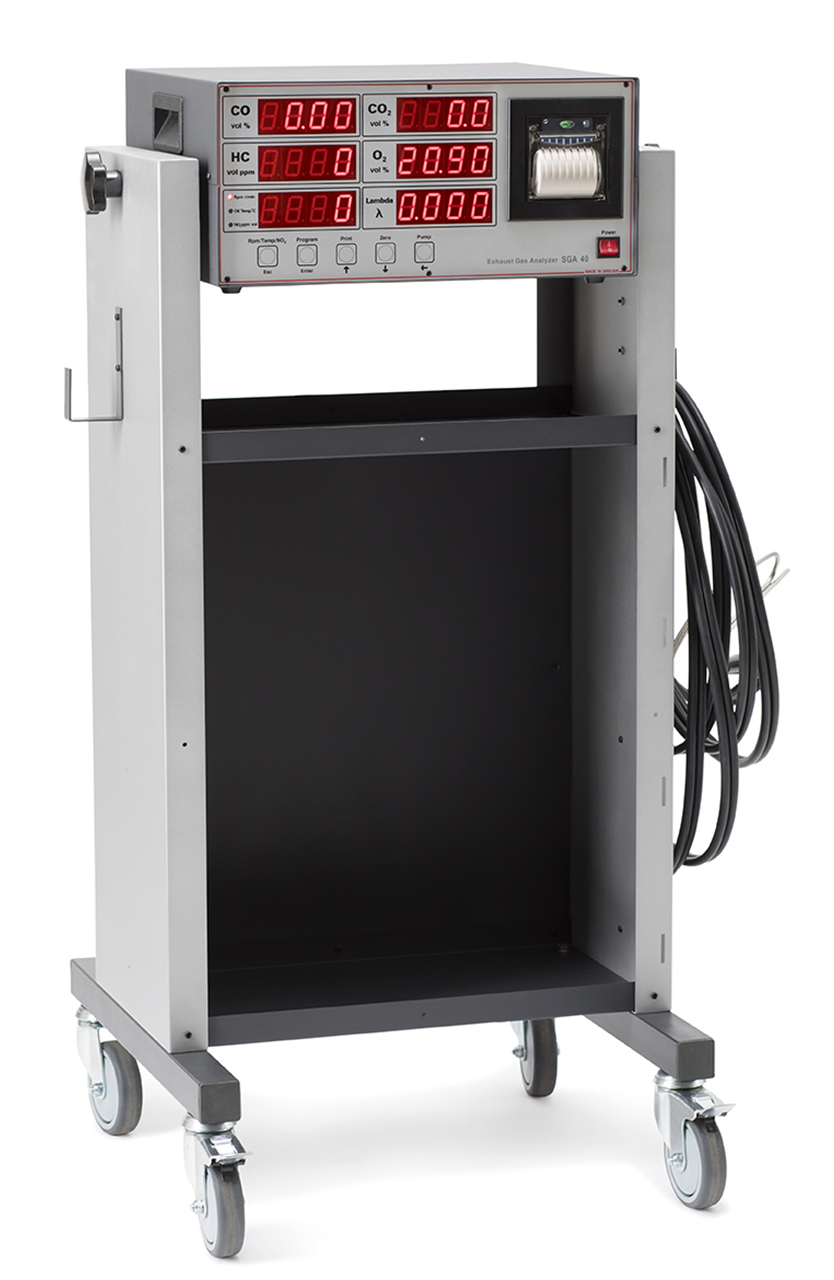

• Mobile trolley is available as option.
